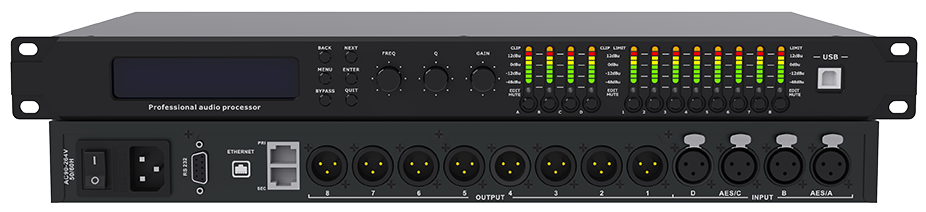

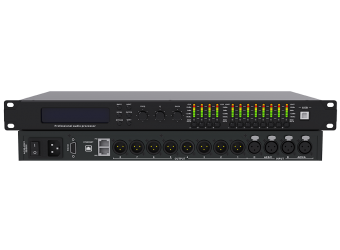

PROCESSOR

> PA > PROCESSOR

PRODUCT FEATURES: - Input/Output: 4 IN / 8 OUT.
- Input/output terminals: XLR.
- 4-channel Dante network audio selection function.
- 96KHz sampling frequency, 24bit A/D
and D/A Converter used.
- 15 band PEQ input and 10 band PEQ output function.
- HPF and LPF, LSLV, HSLV functions of Butterworth/Bessel/
Linkwitz-Riley scheme.
- ALL-PASS, bandpass, bandstop, phase, and notch filters,
with 3 types of high-pass and low-pass functions.
- 3-band EQ input.
- Supports USB or TCP/IP, RS-232 connectors for PC connection.
- Ability to store 30 User Program Parameter values.
- Lock function to control panel functions by setting
a password with the system button.
- LED display function to check signal input/output signals.
-Suitable for stage, bar and other high-end sound systems
with various audio performances.
