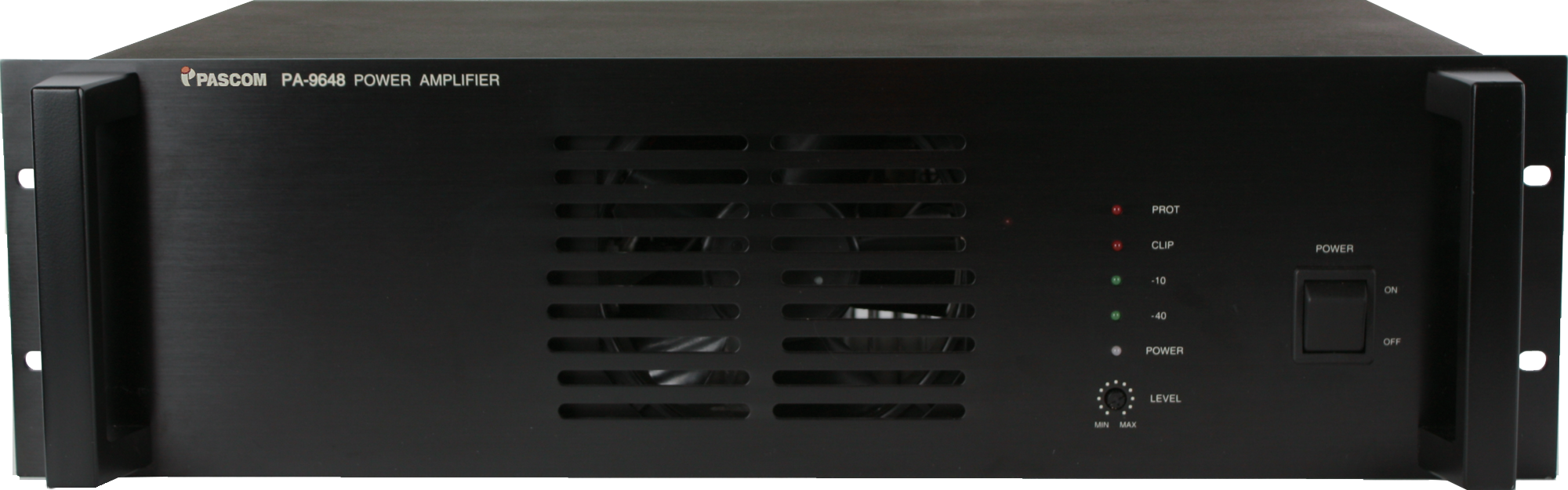

POWER Amplifier

MODEL
PA-9612/9624/9636/9648
PRODUCT FEATURES
- Adopting a low-noise, high-power circuit, it boasts a
signal-to-noise ratio of over 95dB and a distortion factor
of less than 1% at 120W/240W/360W/480W RMS rated output.
- temperature sensor is included to control fan speed and
protect the circuit when temperatures exceed the specified
range due to overload or overload.
- built-in 400Hz high-pass filter eliminates low-frequency noise
by turning the filter switch ON when necessary.
- Variable output with gain control. Highly reliable components
ensure accurate operation and superior performance.
DOWNLOAD
PRODUCT DETAILS
