RX-TX SYSTEM

> PA > RX-TX SYSTEM

PRODUCT FEATURES: ■Feather.
▶Remote control is possible by linking with the Local Receiver and Main Controller.

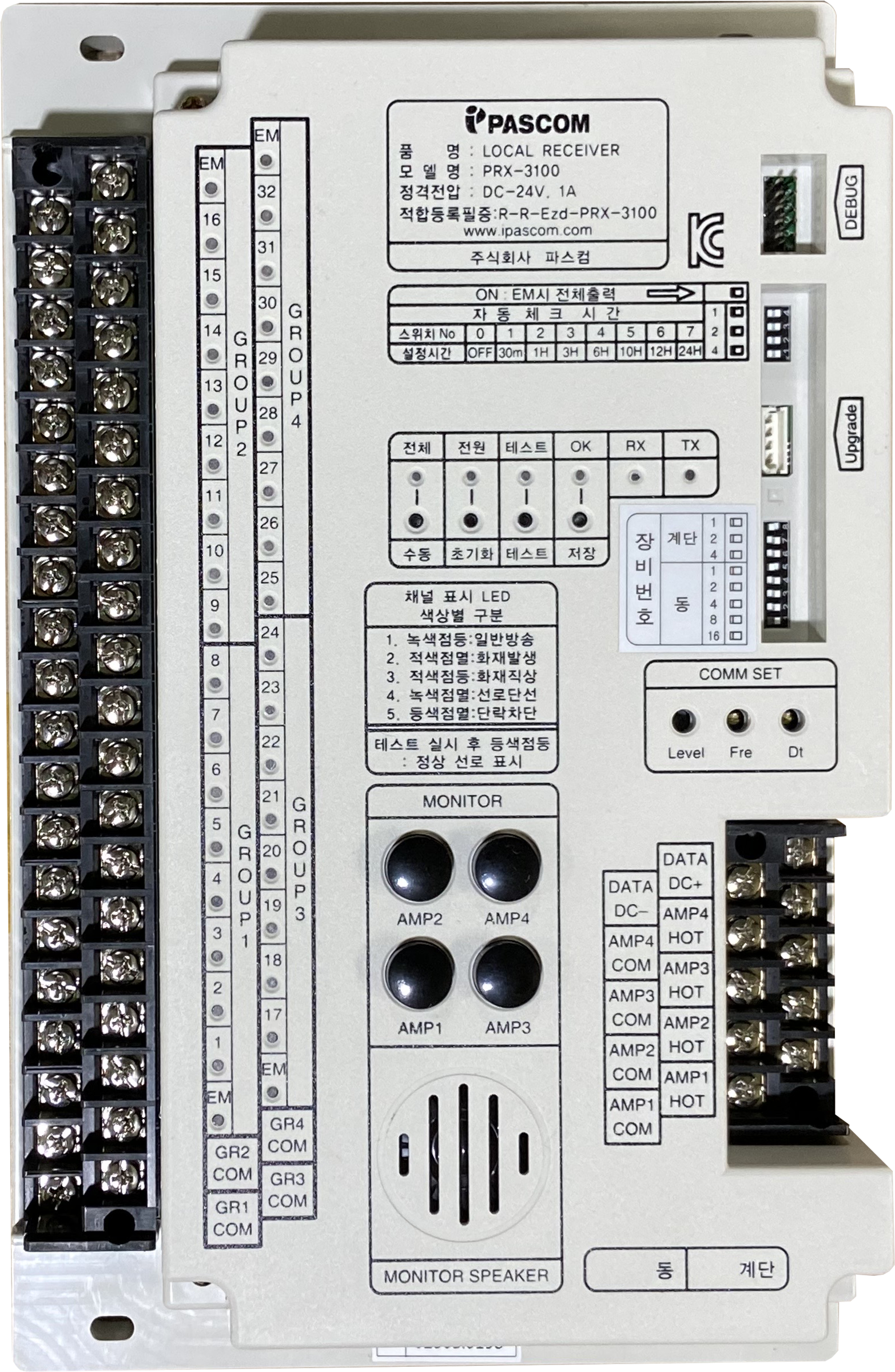

▶PRX-3100 can be divided into up to 99 units and classified by region.(building-staircase)
▶Minimal wiring installation between equipment is possible using power line communication.
▶Automatically distinguishes between general and fire broadcasts, and automatically controls using general contacts, direct phase, and direct phase 4-way fire contacts.
▶Easy to install thanks to user-centered design.
▶Automatically restores to the previous broadcast state using the automatic recovery function.
▶It is possible to control floors 1 through 99 separately based on equipment differentiation.
▶Divided into 32 channels per equipment floor.(B1F, 1F ~ 31F)
▶Operable immediately with simple settings.
▶Built-in line check and short-circuit protection.(automatic recovery)
