8BUS SYSTEM

> PA > 8BUS SYSTEM

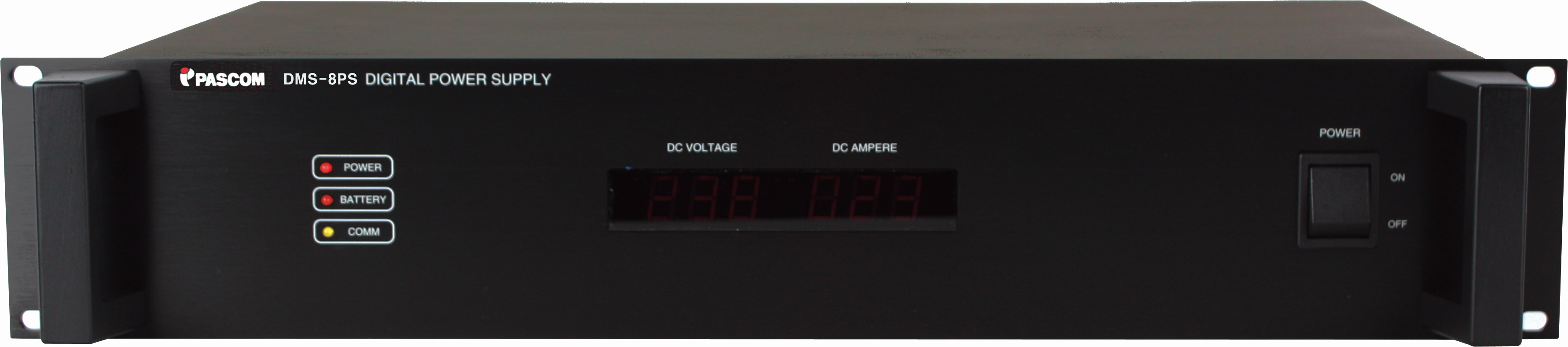

PRODUCT FEATURES: - A built-in power line communication module enables
simultaneous power supply and data communication
with the DMS-8LR (Local Receiver) without a separate
communication line.
FSK (Frequency Shift Keying) modulation.
- Ample terminals allow for easy installation when connecting
the DMS-8LR local receiver.
- The supplied voltage and current consumption are displayed
numerically on the front, allowing you to monitor total power
consumption and wiring shorts.
- The data link function allows for the addition of a DMS-8PS
(power supply) when operating a large number of receivers.
(Based on 5 DMS-8LR units per 1 DMS-8PS)
- The stable and efficient SMPS switching power supply design
ensures high-performance power supply.
- In the event of a power outage, the system detects the power
status and immediately switches power supply to the connected
battery.
