8BUS SYSTEM

> PA > 8BUS SYSTEM

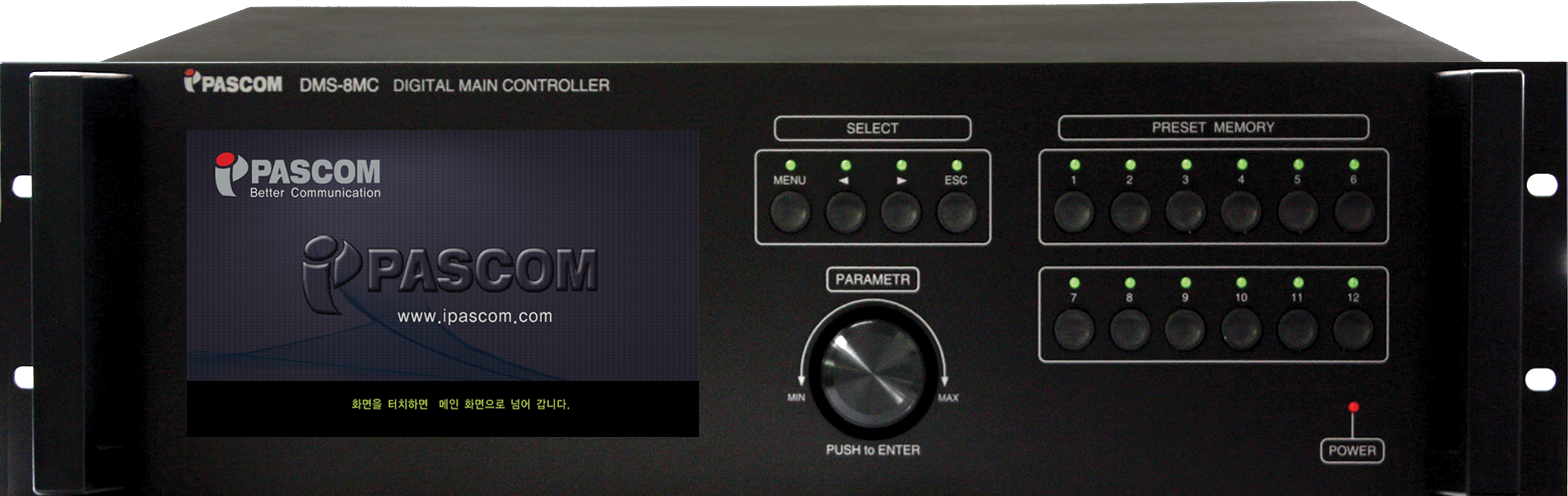

PRODUCT FEATURES: - As the main control unit for the Digital PA System,
it operates by storing system information changed
through the front touch screen and PC operating program.
- It provides an audio matrix function that controls 8-bus
outputs for 14 different audio inputs
(EM, TIMER, RMx2, BGMx10).
- It features a high-priority emergency broadcasting function,
allowing you to select between automatic and manual broadcasting.
- For fire broadcasting, the R-type DAT terminal on the rear
of the unit can be used to receive a DAT from a fire receiver,
and can be linked with the DMS-8ESC to receive a P-type
contact signal for
emergency broadcasting.
- Even during regular or BGM broadcasting, broadcasts are
automatically switched based on priority, such as emergency,
timer, remote microphone broadcasting.
- Peripheral devices (CD, TUNER, VOICE FILE) can be remotely
controlled from a PC via the RS-485 terminal. - A variety of
background music sources can be input through the 2-channel
input terminal.
- The preset memory button on the front allows for convenient
setup and broadcasting of general broadcasts.
- Compatible with R-type (data format) 12-byte compatible fire
alarm receivers. It has been verified with fire alarm receiver manufacturers
(Shinwha Electronics, Dongbang Electronics, CNGS, Protech,
and Goldstar Fire Prevention) for excellent compatibility.
